产品摘要:

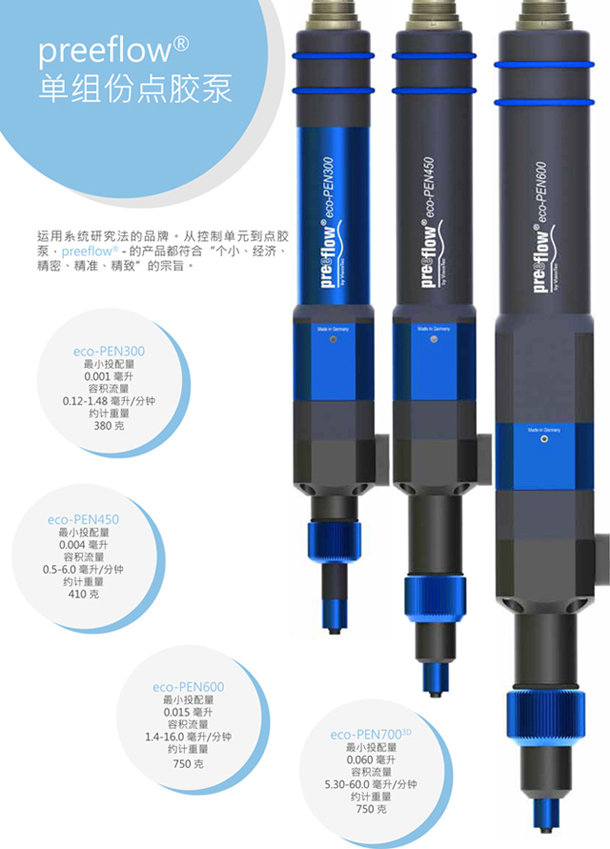

德国ViscoTec维世科(preeflow)单双液点胶螺杆阀: ecoPEN300、eco-PEN330、ecoPEN450、ecoPEN600、eco-PEN700


产品描述

德国ViscoTec维世科(preeflow)单双液螺杆阀:

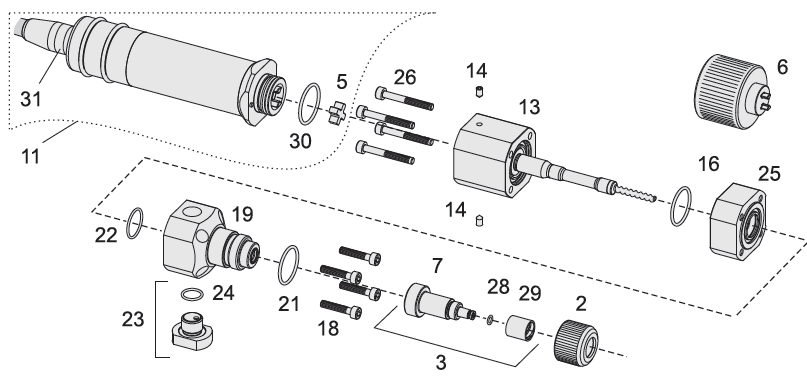

Item  Part no.  x  Itemname:

1

20500



Dosing unit eco-PEN300 cpl.



2

20425



Union ring eco-PEN300

Aluminium

3

20517

x

End piece eco-PEN300 with Luer-Lock cpl.



5

20050

x

Star-shaped coupling

Elastomer

6

20108



Assembly aid

Aluminium

7

20426



Stator end piece cpl. eco-PEN300

VisChem

11

20504

x

Drive unit eco-PEN300 cpl.



13

20518



Bearing housing with rotor set cpl.



14

20088



Set screw

A2

16

20007

x

O-ring

FKM

18

20089



Allen screw

A2

19

20424



Pump housing eco-PEN300

POM

21

20433

x

O-ring Ø 13 x 1.5

FKM

22

20011

x

O-ring Ø 13 x 1.25

FKM

23

20510



Bleed screw eco-PEN300 cpl.

POM

24

20513



O-ring

FKM

25

20148



Sealing set with housing



26

20090



Allen screw

A2

28

20035

x

O-ring

FKM

29

20021



Threaded sleeve Luer-Lock

Aluminium

30

20041

x

O-ring

NBR

31

20784



motor cable eco-PEN cpl.
