产品摘要:

Our eco-PEN is a true volumetric dispensing system that applies the smallest amounts of single-component fluids – for high-precision dispensing technology. Thanks to the proven endless piston principle, watery to pasty liquids are perfectly dispensed. A clean, process-reliable dosage is achieved regardless of fluctuations in viscosity.


产品描述
  HOW IT WORKS

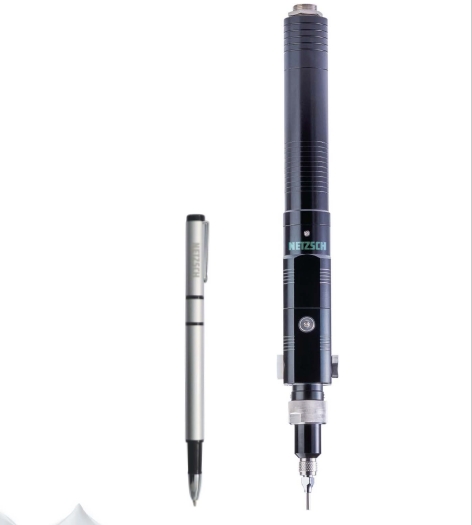

Our eco-PEN is a true volumetric dispensing system that applies the smallest amounts of single-component fluids – for high-pre- cision dispensing technology. Thanks to the proven endless pis- ton principle, watery to pasty liquids are perfectly dispensed. A clean, process-reliable dosage is achieved regardless of fluctu- ations in viscosity.
preeflow® stands for high-quality products, from control units to dispensers. Always true to the motto: “smaller, more precise, more economical“. They are suitable for manual workstations, such as workbench applications, or for semi and fully automa- ted operation.
Description eco-PEN300 eco-PEN330 eco-PEN450 eco-PEN600 eco-PEN7003D
Art. No. 20505 21525 20092 20048 20723
Measurements length 216 mm,
Ø 33 mm
length 225 mm,
Ø 33 mm
length 228 mm,
Ø 33 mm
length 274 mm,
Ø 40 mm
length 274 mm,
Ø 40 mm
Weight 280 g 300 g 300 g 650 g 650 g
Operating pressure 0 – 6 bar 0 – 6 bar 0 – 6 bar 0 – 6 bar 0 – 6 bar
Max. dispensing pressure (1) 20 bar 20 bar 20 bar 20 bar 10 bar
Viscosity watery to pasty watery to pasty watery to pasty watery to pasty watery to pasty
Volume flow 0.12 – 1.48
ml/min
0.2 – 3.3
ml/min
0.5 – 6.0
ml/min
1.4 – 16.0
ml/min
5.3 – 60.0
ml/min
Min. dispensing quantity 0.001 ml 0.002 ml 0.004 ml 0.015 ml 0.060 ml
Dispensing accuracy (2) ± 1 % ± 1 % ± 1 % ± 1 % ± 1 %
Stator material VisChem VisChem (optional VisLas) VisChem (optional VisLas) VisChem (optional VisLas) VisChem
Material inlet G 1/8“ DIN/ISO 228 G 1/8“ DIN/ISO 228 G 1/8“ DIN/ISO 228 G 1/4“ DIN/ISO 228 G 1/4“ DIN/ISO 228
Material outlet Luer-Lock (patented) Luer-Lock (patented) Luer-Lock (patented) Luer-Lock (patented) Luer-Lock (patented)
Wetted parts POM / stainless steel / VisChem / HD-PE POM / stainless steel / VisChem / HD-PE (optional VisLas) POM / stainless steel / VisChem / HD-PE (optional VisLas) POM / stainless steel / VisChem / HD-PE (optional VisLas) POM / stainless steel / VisChem / HD-PE
Operating conditions 10 – 40 °C 10 – 40 °C 10 – 40 °C 10 – 40 °C 10 – 40 °C
Repeat accuracy > 99 % > 99 % > 99 % > 99 % > 99 %

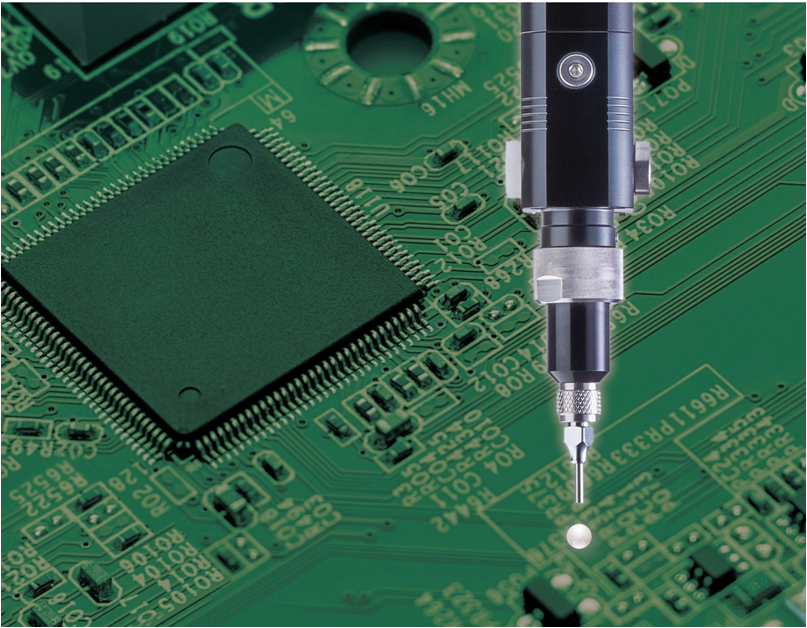

In the field of electronics, more and more devices and enclosuresare being bonded instead of screwed or fastened.
Theeco-PEN series from preeflow® meets the demands of themarket for miniaturization. The micro-dispensing units
achievethe smallest dispensing results of up to 0.001 ml and can therefore be implemented into almost any dispensing
application.Among the advantages that the customer benefits from,through the integration of the eco-PENinto their
system, areprecision, a repeat accuracy of ≥ 99 %, a stable process and aclean dispensing application.

True to the motto “plug´n´dose“, both the 1 component dispensereco-PEN and the 2 component dispenser eco-DUO
are readyto use after a simple stator installation and connection to thecontroller. The operation of the dispenser and
the controller is intuitive. In addition to the ease of commissioning and the capability of applying a large number of
different materials, there are other advantages: the viscosity-independent, purely volumetric dispensing in small and
very small quantities.
In the field of electronics, more and more devices and enclosures
are being bonded instead of screwed or fastened. The
eco-PEN series from preeflow® meets the demands of the
market for miniaturization. The micro-dispensing units achieve
the smallest dispensing results of up to 0.001 ml and can
therefore be implemented into almost any dispensing application.
Among the advantages that the customer benefits from,
through the integration of the eco-PEN into their system, are
precision, a repeat accuracy of ≥ 99 %, a stable process and a
clean dispensing application.
True to the motto “plug´n´dose“, both the 1 component dispenser
eco-PEN and the 2 component dispenser eco-DUO are ready
to use after a simple stator installation and connection to the
controller. The operation of the dispenser and the controller is
intuitive. In addition to the ease of commissioning and the capability
of applying a large number of different materials, there are
other advantages: the viscosity-independent, purely volumetric
dispensing in small and very small quantities.
